Descripción

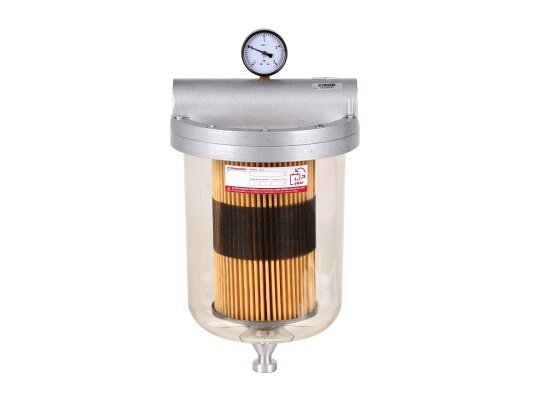

FG-150 filters are suitable for microfiltration of particles and water absorption in a fuel dispensing dispenser. The filter comes with a filter element installed.
The transparent housing allows you to see the amount of liquid inside. Contaminated fuel and foreign particles located between the filter cartridge and the transparent glass can be removed through the manual lower valve.
Built-in vacuum gauge.
Easy filter replacement:
Unscrew 10 screws on the top. Replace the filter, ensuring a tight connection to avoid leaks.
Differences from FG150:
- particle filtration up to 15 μm;
- water-absorbing filter.
Características
Número de pieza del fabricante: 660500300Filtration degree: 15 µmWater separation percentage: 93Maximum cartridge resource: 1,000,000 lBandwidth: 160 l/minMaximum working pressure: 0.3, 4 barInstallation location: into the suction lineWith the water separation function: yesCorpus: metallic and plasticBuilt-in internal pressure gauge: yesBuilt-in drain valve for sediment from the filter: yesType of filtered liquid: gasoline, biodiesel, diesel fuelFilter flask volume: 10 lInput-output port: 1.5 inches (40 mm)
La información sobre las características técnicas, la apariencia y el color del producto es solo de referencia y se basa en la información más reciente disponible en el momento de la publicación
