Descripción

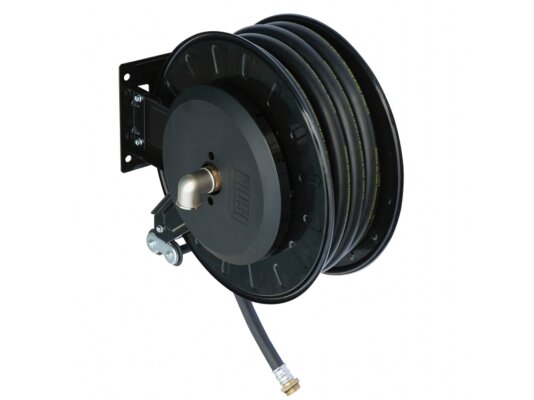

The Hosereel with hose 8 x 1” BIG automatic reel is supplied with a delivery hose included. The reel is designed and manufactured by the Italian company Piusi – a European leader in innovative fuel handling equipment.
Application area
The fuel hose reel of the presented modification is designed for installation on fuel trucks and fuel dispensing units engaged in refueling large-sized diesel equipment, as well as performing operations for pumping diesel fuel, for which the length of a standard 4-meter hose will not be sufficient.
Completeness
The fuel dispensing unit consists of:
- a drum with a built-in automatic fuel hose winding mechanism;
- a mounting bracket, allowing to fix the reel on any surface, in any position;
- a guide bracket, designed for even laying and preventing the hose from unwinding spontaneously;
- an oil and gasoline resistant pressure hose with an inner diameter of 25 mm and a length of 8 m with a metal end-fitting for attaching the refueling gun.
The fuel hose reel is equipped with an angular coupling with an internal thread for connection to the fuel supply line.
Upon request, the unit can be equipped with a swivel support for adjusting the direction of hose extension.
Design advantages
- Stainless steel and a durable paint coating reliably protect the structure from corrosion.
- The automatic winding mechanism allows one operator to service the refueling complex.
- Adjustable brackets simplify the placement of the unit according to needs.
- The correctly selected size of the hydraulic system reduces fuel pressure losses.
